MFS1S50-H005E

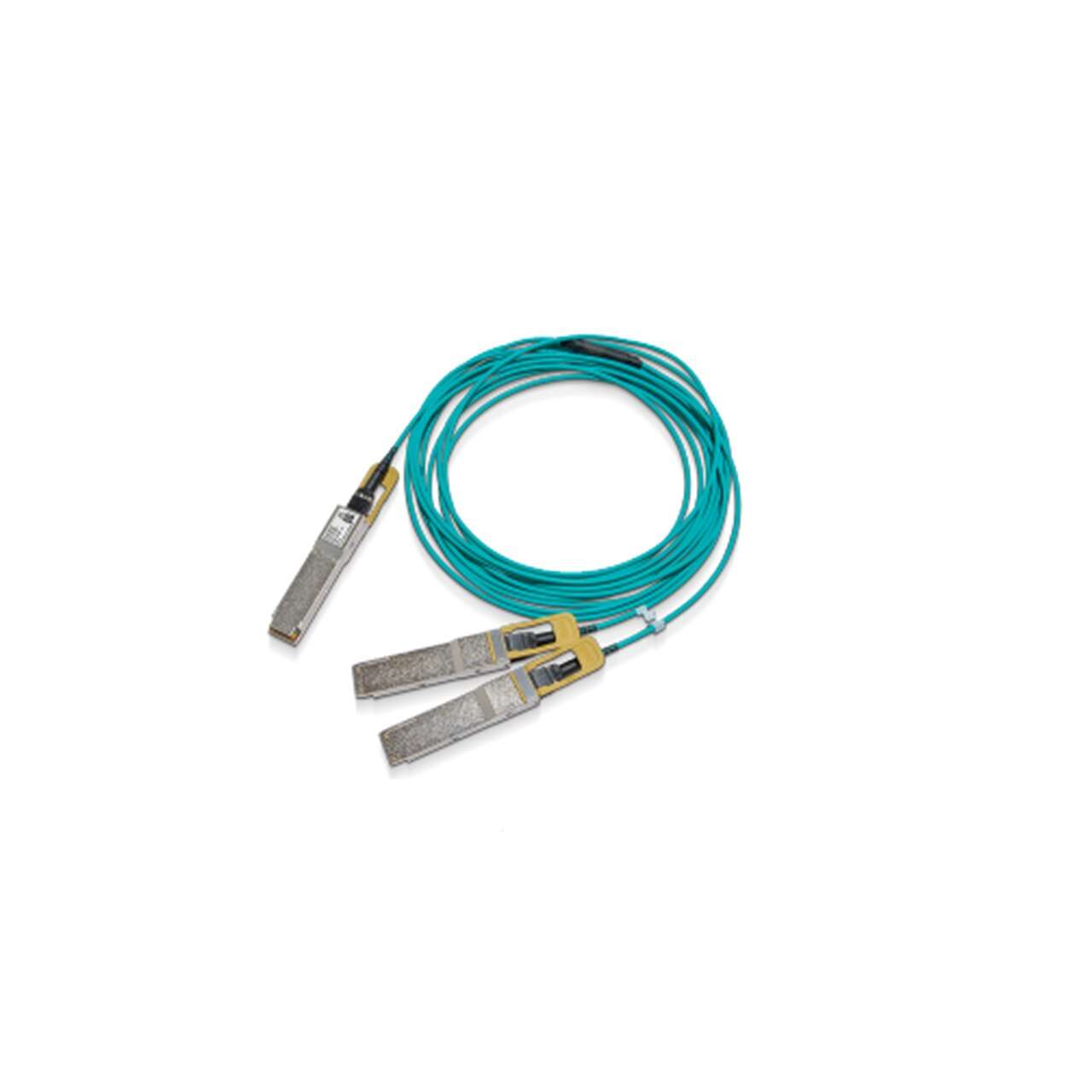

Mellanox MFS1S50-H005E Active Fiber Splitter Cable IB HDR 200Gb/s to 2x100Gb/s QSFP56 to 2xQSFP56 LSZH 5m

Mellanox MFS1S50-H005E Active Fiber Splitter Cable IB HDR 200Gb/s to 2x100Gb/s QSFP56 to 2xQSFP56 LSZH 5m

Mellanox MFS1S50-HxxxE is a QSFP56 VCSEL-based (Vertical Cavity Surface-Emitting Laser), cost effective 200Gb/s to 2 x 100Gb/s active optical splitter cable (AOC) designed for use in 200Gb/s InfiniBand HDR (High Data Rate) systems.

The MFS1S50-HxxxE cable is compliant with SFF-8665 for the QSFP56 pluggable solution. It provides connectivity between system units with a 200Gb/s connector on one side and two separate 100Gb/s connectors on the other side, such as a switch and two servers. The cable connects data signals from each of the 4 MMF (Multi Mode Fiber) pairs on the single QSFP56 end to the dual pair of each of the QSFP56 multiport ends. Each QSFP56 end of the cable comprises an EEPROM providing product and status monitoring information, which can be read by the host system.
